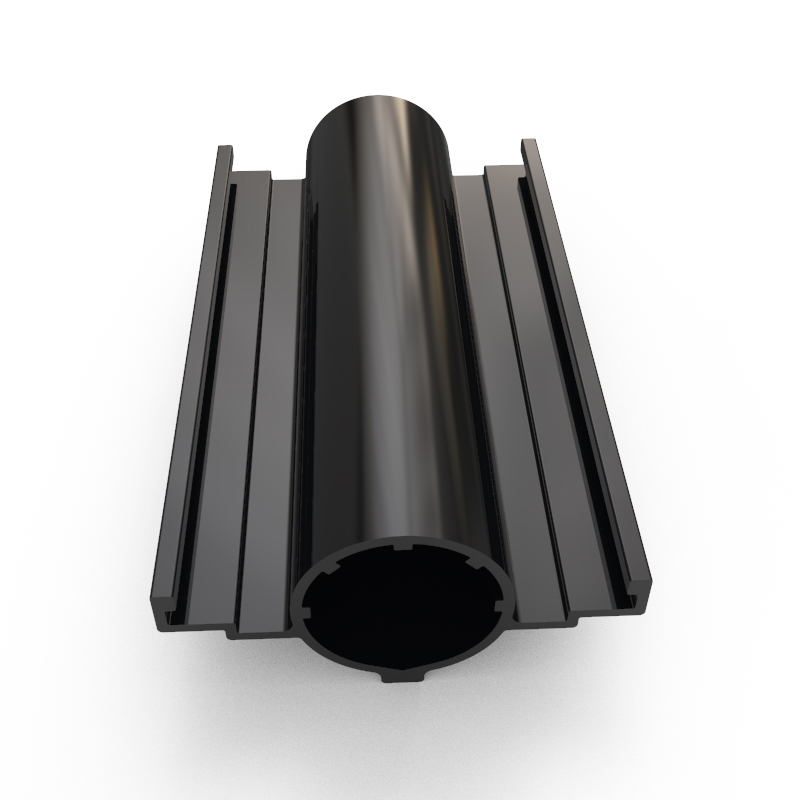

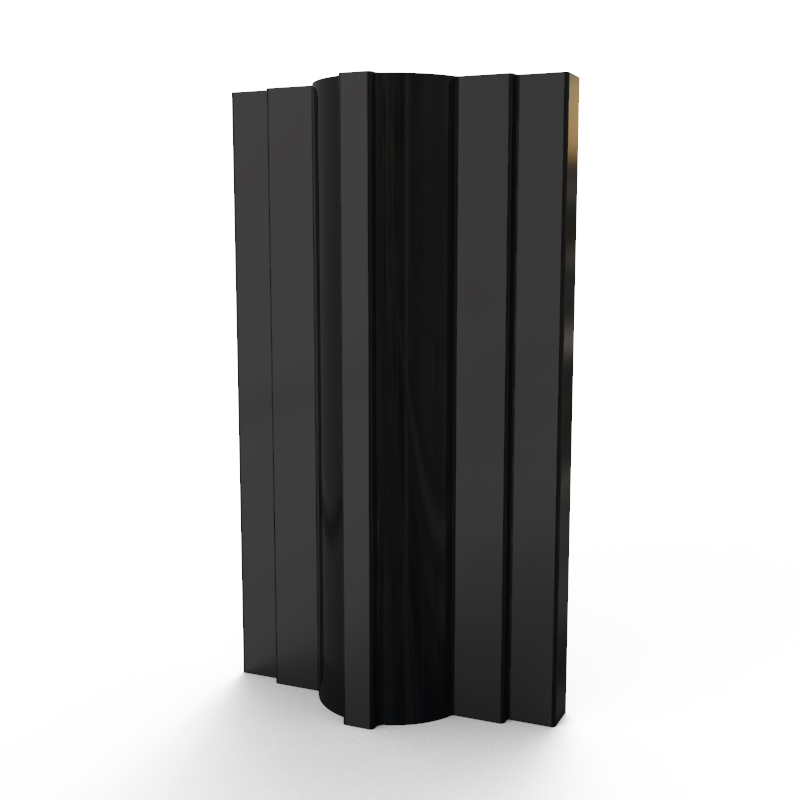

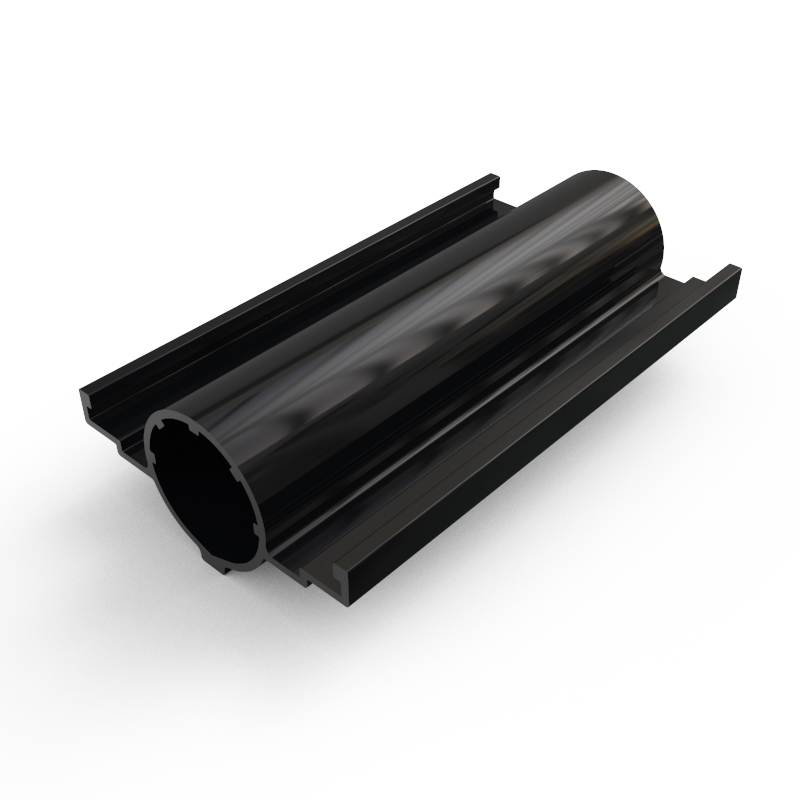

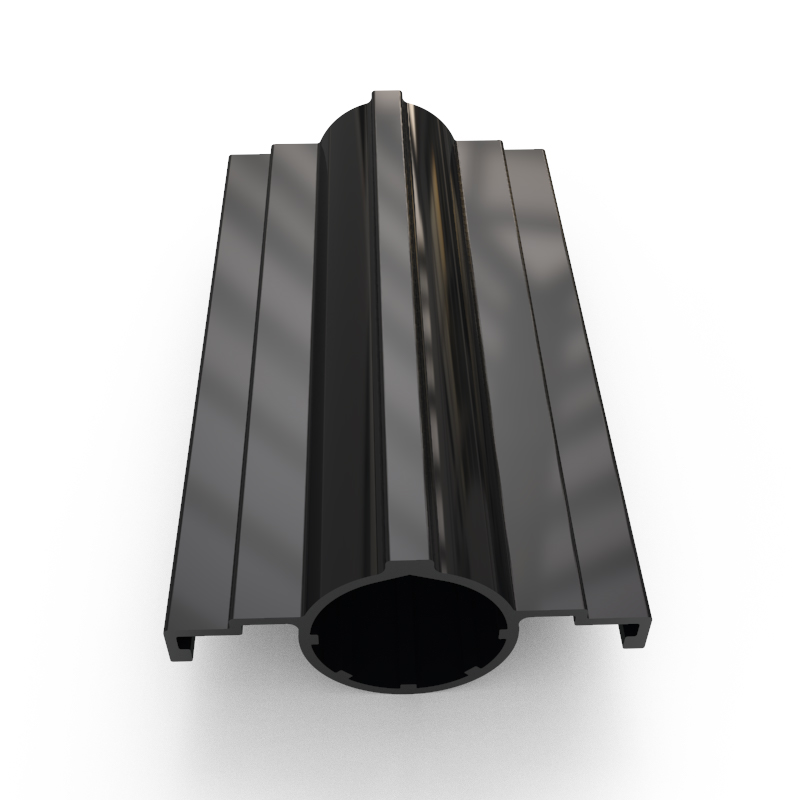

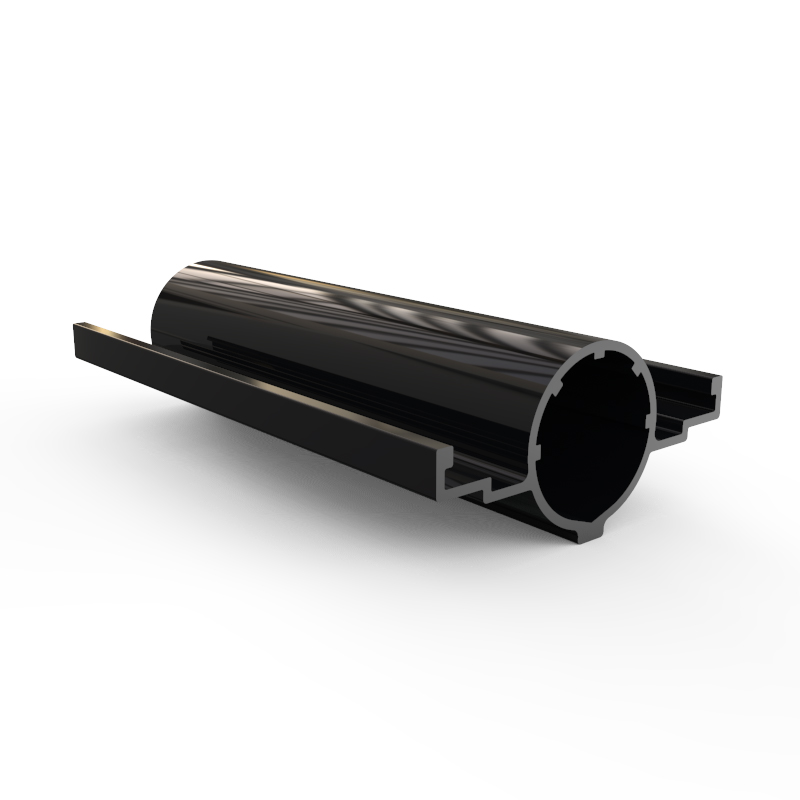

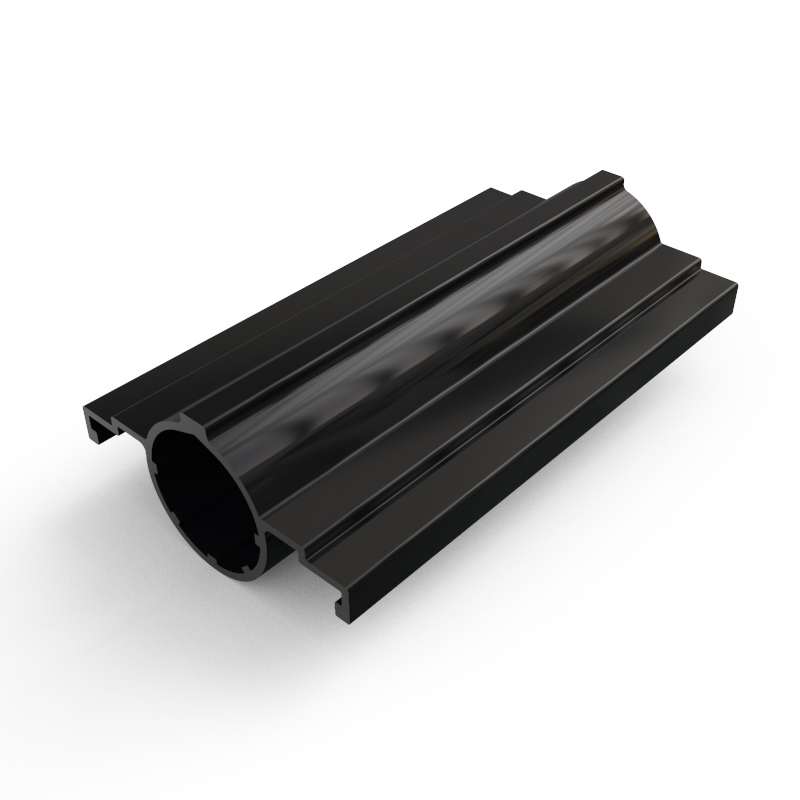

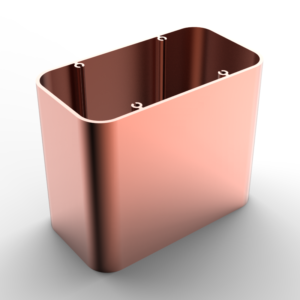

Extruded Aluminum Motor Housing

Name: Extruded Aluminum Motor Housing
Brand: Chengdacai
SKU: CDC-578

描述

Chengdacai manufactures custom extruded aluminum motor housings for electric motors, servo systems, drives and industrial automation. The extrusion creates the main body efficiently, while CNC machining establishes the end faces, mounting interfaces, bores, slots, threaded holes and other functional features defined by your drawing.

Engineering Focus for Extruded Motor Housings

A motor housing must do more than protect internal components. Its profile geometry can influence structural rigidity, heat dissipation, bearing and end-cover alignment, cable routing and assembly efficiency. During DFM review, we evaluate wall-thickness transitions, internal cavities, ribs, external fins, corner radii and machining access before tooling.

Dimensional stability: consistent wall distribution helps control distortion during extrusion, heat treatment and machining.
Machining datums: functional bores, end faces and mounting interfaces should reference clearly defined drawing datums.
Thermal management: fins and external surface area can be incorporated where heat rejection is part of the design.
Assembly design: screw bosses, grooves, cable exits and end-cover features can be integrated or machined after extrusion.

Material and Finish Options

6063 is frequently considered when extrusion complexity, surface appearance and anodizing quality are priorities. 6061 or 6082 may be evaluated where higher mechanical strength or heavier machining is required. Final alloy and temper depend on the section geometry, loads, finish and dimensional requirements.

Available finishes include clear, black or colored anodizing, powder coating, electrophoresis, brushing and drawing-specified treatments. Critical grounding, sealing or machined contact areas can be identified for masking or post-finish machining.

Integrated Secondary Operations

Cutting & PreparationCut-to-length, deburring and surface preparation

CNC MachiningEnd facing, boring, milling, drilling, tapping and slots

InspectionDrawing-based checks of length, interfaces, position and geometry

Finishing & PackingAnodizing or coating with protected export packaging

Drawing and Quality Requirements

For an accurate review, identify the critical internal diameter or bore, overall length, end-face relationship, mounting-hole positions, interface tolerances, surface finish and any concentricity, runout or perpendicularity requirements. These characteristics are not assumed; they should be stated on the drawing with an inspection method appropriate to the assembly.

Typical Applications

Electric motor bodies, servo motor housings, actuator enclosures, drive-system bodies, pump or fan motor housings, and cylindrical automation-equipment enclosures.

Information Needed for Quotation

Send a 2D drawing and, where available, a 3D model together with alloy, temper, finish, finished length, annual quantity, prototype quantity, critical tolerances, inspection expectations and delivery destination.

Frequently Asked Questions

Can the motor housing include external cooling fins?

Yes. Fin geometry can be evaluated as part of the extrusion cross-section, subject to die feasibility, wall balance and handling requirements.

Can the bore and end faces be CNC machined after extrusion?

Yes. Boring, end facing and other precision features can be machined from defined datums after extrusion and heat treatment.

Which alloy is suitable for an aluminum motor housing?

6063 is often selected for extrudability and finish quality, while 6061 or 6082 may be considered for higher strength or machining requirements. The drawing and application determine the final choice.
